Meet the HX-009F: Your Ultimate Solution for Metal Tube Filling and Sealing

The HX-009F Fully Automatic Metal Tube Filling and Sealing Machine is designed for versatility and efficiency, making it an ideal solution for modern production lines. With easy and quick adjustment, it is suitable for filling and crimping multiple kinds of soft metal tubes. The parts that come into contact with materials are made of 316L stainless steel, ensuring cleanliness, sanitation, and compliance with GMP standards for pharmaceutical manufacturing.

This machine is particularly well-suited for industries such as cosmetics, pharmaceuticals, and chemicals, where precision and reliability are crucial. The HX-009F offers exceptional performance, making it a top choice for diverse production needs.

Advanced Features of the HX-009F Fully Automatic Metal Tube Filling and Sealing Machine

  • Compact Design
  • Driving Parts Fully-closed
  • Pneumatic Tube Washing & Feeding
  • Intelligent Temperature Control and Cooling System
  • Easy to Operate and Adjust
  • 316L Stainless Steel Contact Parts to meet GMP Standard
  • Safety Interlock Shutdown when Door is Open
  • Overload Protection Provided
  • Automated Working process from Tube Loading to Finished Products Output
  • Automatic Orientation Effected by Photoelectric Induction

Specification & Technical parameter

Filling Volume1-120ml/unit (Adjustable)
Filling Accuracy≤±1%
Capacity2400-3600units/hour (Adjustable)
Tube DiameterΦ10-28mm
Tube Length50-180mm
Hopper Volume40L
Equipped Motor1.1KW
Machine Power2kw
Dimension1950x750x1850mm
Power Supply380/220 (Optional)
WeightAbout 900Kg

Product gallery

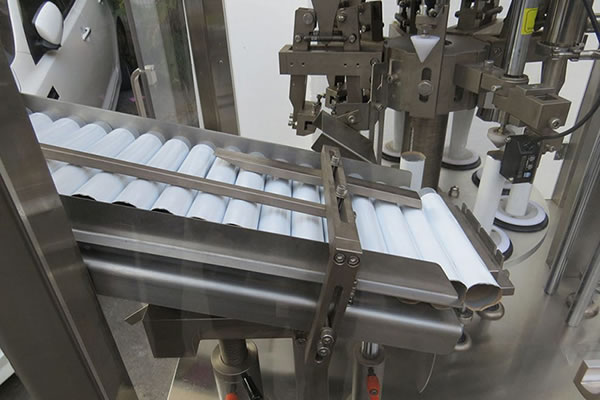

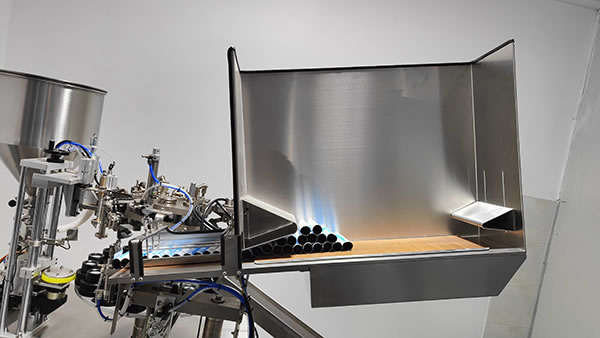

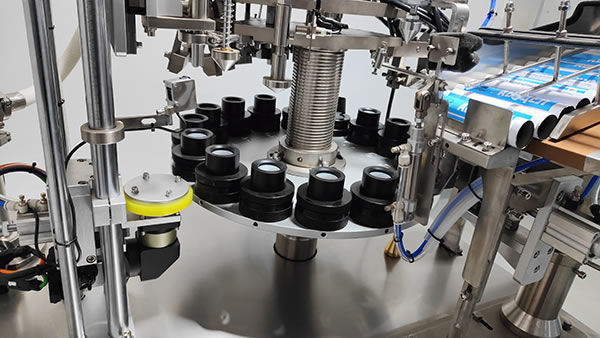

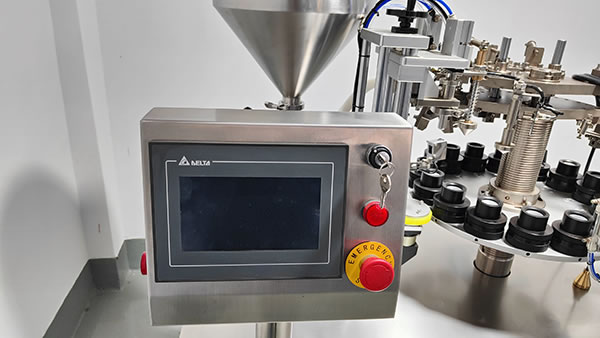

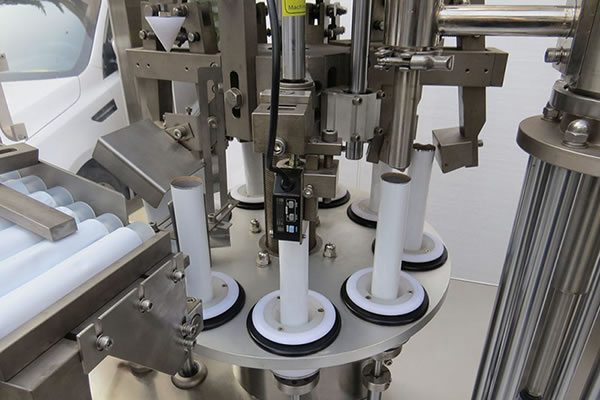

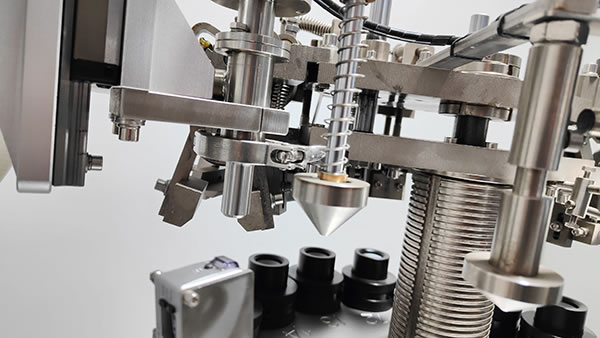

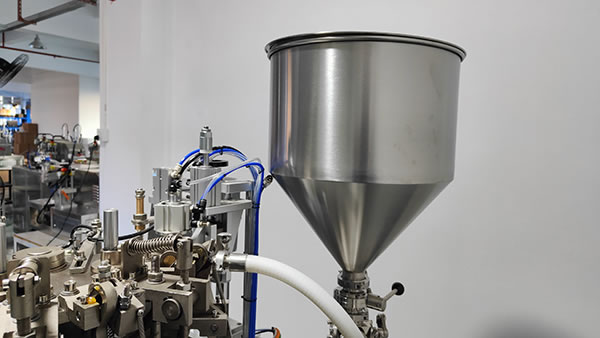

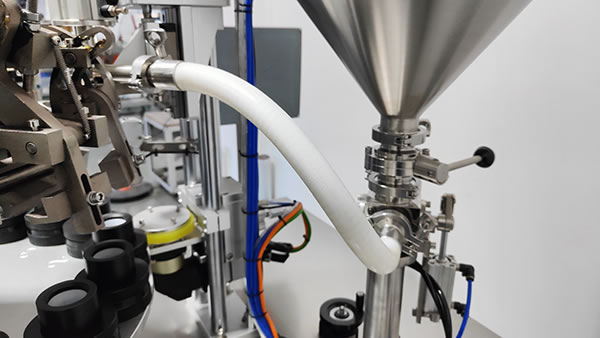

  • HX-009F Fully Automatic Metal Tube Filling and Sealing Machine
  • HX-009F Fully Automatic Metal Tube Filling and Sealing Machine
  • HX-009F Fully Automatic Metal Tube Filling and Sealing Machine
  • HX-009F Fully Automatic Metal Tube Filling and Sealing Machine
  • HX-009F Fully Automatic Metal Tube Filling and Sealing Machine
  • HX-009F Fully Automatic Metal Tube Filling and Sealing Machine
  • HX-009F Fully Automatic Metal Tube Filling and Sealing Machine
  • HX-009F Fully Automatic Metal Tube Filling and Sealing Machine

Note: We don’t provide emulsifying machine. This machine cannot make filling materials by itself. If you need, we could help you to contact manufacturer of emulsifying machine.
