HX-006F Semi-automatic Aluminium & Metal Tube filling machine
Consult now to get discount
- High quality
- Fast delivery
- After-sales guarantee
Meet the HX-006F: Your Ultimate Solution for Aluminium & Metal Tube filling
Advanced Features of the HX-006F Semi-automatic Aluminium & Metal Tube filling machine
- Automatic labelling, sensitive labelling, and no tube do not work.
- Filling precision and cylinder filling control to ensure the accuracy of filling.
- Firm and beautiful sealing, photoelectric sensing and pneumatic door linkage control.
- Date coding, customized tooth plate according to demand
- Clamp design, easy to replace, good cleaning
- Overall height adjustment: the organization’s height to adjust the machine’s height is simple and convenient.

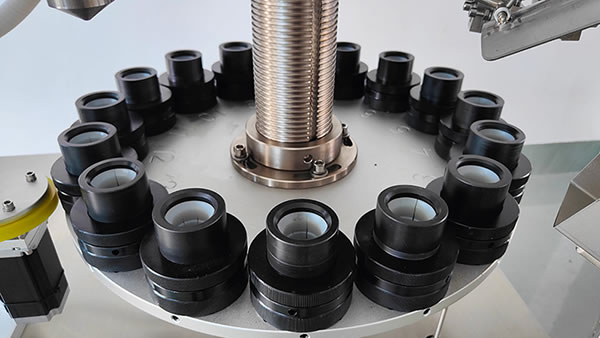

- Replacement of products quickly, 16-station design, applicable to 20-32mm pipe diameter
- Simple operation, simple panel, easy to understand.
- Used for metal tube filling and folding like ointment.
Specification & Technical parameter
| Machine Parameters | |
| Model | HX-006F |
| Power supply | AC220V 50/60HZ singe phase |
| Power | 2.2Kw |
| Air pressure | 0.6-0.8Mpa |
| Working temperature | 5℃～38℃ |
| Filling volume | 10-70ml or 30-140ml |
| Filling accuracy | ±1% |
| Capacity | Max 50units/min (depending on filling volume) |
| Tube diameter | Φ13-32mm |
| Tube Length | 50-220mm |
| Filling range | 10-70ml, 30-140, 50-300ml |
| Dimension | 1180×750×1750mm |
| Machine N.W | 300kg |
| Machine Body | 304# stainless stee |
| Main part list: | |
| PLC | Mitsubishi |
| Touch Panel | Delta |
| Color Mark Sensor | Keyence |
| Pneumatic parts | Airtac (Taiwan) |
| Intermittent reply | Omron |
Ideal Applications for the HX-006F Semi-automatic Aluminium & Metal Tube filling machine
Used for pharmaceutical, cosmetics, chemical, and aluminum metal tube filling.
Hand Cream-
Silicone Grease
-
Body Lotion Cream
